Jump sites log norm diffusion with scipy

Introduction

The objective of this notebook is to show how to use one of the models of the QENSlibrary, sqwJumpSitesLogNormDist, to perform some fits.

scipy.optimize.curve_fit is used for fitting.

Physical units

For information about unit conversion, please refer to the jupyter notebook called Convert_units.ipynb in the tools folder.

The dictionary of units defined in the cell below specify the units of the refined parameters adapted to the convention used in the experimental datafile.

# Units of parameters for selected QENS model and experimental data

dict_physical_units = {'scale': "unit_of_signal.ps",
                       'center': "1/ps",
                       'radius': 'Angstrom',
                       'resTime': 'ps'}

Import libraries

import numpy as np
import matplotlib.pyplot as plt
from scipy.optimize import curve_fit
import ipywidgets
import QENSmodels

Plot fitting model

The widget below shows the peak shape function imported from QENSmodels where the function’s parameters can be varied.

# Dictionary of initial values
ini_parameters = {'q': 1., 'scale': 5., 'center': 5., 'Nsites': 3, 'radius': 1., 'resTime':1., 'sigma': 1.}

def interactive_fct(q, scale, center, Nsites, radius, resTime, sigma):
    """
    Plot to be updated when ipywidgets sliders are modified
    """
    xs = np.linspace(-10, 10, 100)
    fig0, ax0 = plt.subplots()
    ax0.plot(xs, QENSmodels.sqwJumpSitesLogNormDist(xs, q, scale, center, Nsites, radius, resTime, sigma))
    ax0.set_xlabel('x')
    ax0.grid()

# Define sliders for modifiable parameters and their range of variations
q_slider = ipywidgets.FloatSlider(value=ini_parameters['q'],
                                  min=0.1, max=10., step=0.1,
                                  description='q',
                                  continuous_update=False)

scale_slider = ipywidgets.FloatSlider(value=ini_parameters['scale'],
                                      min=0.1, max=10, step=0.1,
                                      description='scale',
                                      continuous_update=False)

center_slider = ipywidgets.IntSlider(value=ini_parameters['center'],
                                     min=-10, max=10, step=1,
                                     description='center',
                                     continuous_update=False)

Nsites_slider = ipywidgets.IntSlider(value=ini_parameters['Nsites'],
                                     min=2, max=10, step=1,
                                     description='Nsites',
                                     continuous_update=False)

radius_slider = ipywidgets.FloatSlider(value=ini_parameters['radius'],
                                       min=0.1, max=10, step=0.1,
                                       description='radius',
                                       continuous_update=False)

resTime_slider = ipywidgets.FloatSlider(value=ini_parameters['resTime'],
                                        min=0.1, max=10, step=0.1,
                                        description='resTime',
                                        continuous_update=False)

sigma_slider = ipywidgets.FloatSlider(value=ini_parameters['sigma'],
                                        min=0.1, max=10, step=0.1,
                                        description='sigma',
                                        continuous_update=False)

grid_sliders = ipywidgets.HBox([ipywidgets.VBox([q_slider, scale_slider, center_slider, Nsites_slider])
                                ,ipywidgets.VBox([radius_slider, resTime_slider, sigma_slider])])

# Define function to reset all parameters' values to the initial ones
def reset_values(b):
    """
    Reset the interactive plots to inital values
    """
    q_slider.value = ini_parameters['q']
    scale_slider.value = ini_parameters['scale']
    center_slider.value = ini_parameters['center']
    Nsites_slider.value = ini_parameters['Nsites']
    radius_slider.value = ini_parameters['radius']
    resTime_slider.value = ini_parameters['resTime']
    sigma_slider.value = ini_parameters['slider']

# Define reset button and occurring action when clicking on it
reset_button = ipywidgets.Button(description = "Reset")
reset_button.on_click(reset_values)

# Display the interactive plot
interactive_plot = ipywidgets.interactive_output(
    interactive_fct,
    {'q': q_slider,
     'scale': scale_slider,
     'center': center_slider,
     'Nsites': Nsites_slider,
     'radius': radius_slider,
     'resTime': resTime_slider,
     'sigma': sigma_slider}
)

display(grid_sliders, interactive_plot, reset_button)

Creating reference data

Input: the reference data for this simple example correspond to sqwJumpSitesLogNormDist with added noise.

The fit is performed using scipy.optimize.curve_fit. The example is based on implementations from https://docs.scipy.org/doc/scipy/reference/generated/scipy.optimize.curve_fit.html

# Creation of reference data
nb_points = 100
xx = np.linspace(-10, 10, nb_points)
added_noise = np.random.normal(0, 1, nb_points)
sqw_jump_sites_noisy = QENSmodels.sqwJumpSitesLogNormDist(
    xx,
    q=0.89,
    scale=1,
    center=0.3,
    Nsites=5,
    radius=2,
    resTime=0.45,
    sigma=0.25
) * (1. + 0.04 * added_noise) + 0.02 * added_noise

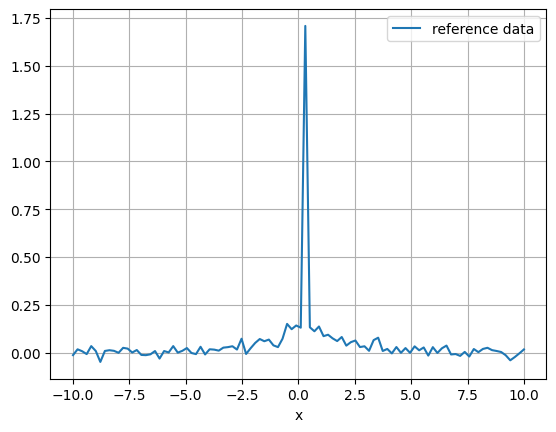

fig1, ax1 = plt.subplots()
ax1.plot(xx, sqw_jump_sites_noisy, label='reference data')
ax1.set_xlabel('x')
ax1.grid()
ax1.legend();

Setting and fitting

From https://docs.scipy.org/doc/scipy/reference/generated/scipy.optimize.curve_fit.html

Perform fit varying scale, center, radius, resTime and sigma. Nsites and q are fixed to 5 and 0.89, respectively.

def func_to_fit(xx, scale, center, radius, resTime, sigma):
    return QENSmodels.sqwJumpSitesLogNormDist(
        xx,
        0.89,
        scale,
        center,
        5,
        radius,
        resTime,
        sigma)

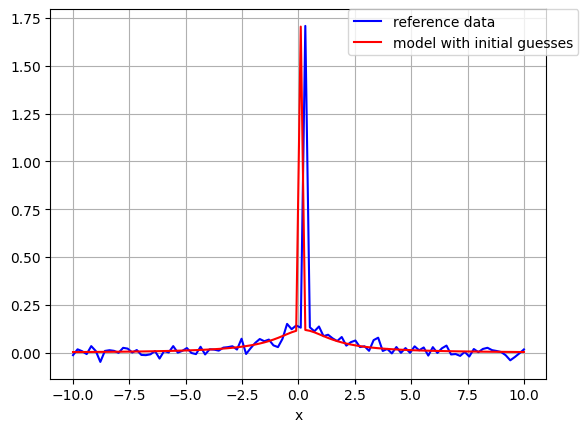

fig2, ax2 = plt.subplots()
ax2.plot(xx, sqw_jump_sites_noisy, 'b-', label='reference data')
ax2.plot(xx,
         QENSmodels.sqwJumpSitesLogNormDist(
             xx,
             0.89,
             scale=0.95,
             center=0.2,
             Nsites=5,
             radius=2,
             resTime=0.45,
             sigma=0.25
         ),
         'r-',
         label='model with initial guesses')
ax2.set_xlabel('x')
ax2.grid()
ax2.legend(bbox_to_anchor=(0.6, 1), loc=2, borderaxespad=0.);

success_fit = True

try:
    popt, pcov = curve_fit(
        func_to_fit,
        xx,
        sqw_jump_sites_noisy,
        p0=[0.95, 0.2, 2, 0.45, 0.25],
        bounds=((0.1, -2, 0.1, 0.1, 0.1),
                (5., 2., 5., 11., 1.))
    )

except RuntimeError:
    success_fit = False
    print("Error - curve_fit failed")

Plotting the results

Calculation of the errors on the refined parameters

if success_fit:
    perr = np.sqrt(np.diag(pcov))
    print(
        "Values of refined parameters:\n"
        f"scale: {popt[0]} +/- {perr[0]} {dict_physical_units['scale']}\n"
        f"center {popt[1]} +/- {perr[1]} {dict_physical_units['center']}\n"
        f"radius: {popt[2]} +/- {perr[2]} {dict_physical_units['radius']}\n"
        f"resTime: {popt[3]} +/- {perr[3]} {dict_physical_units['resTime']}\n"
        f"sigma: {popt[4]} +/- {perr[4]}"
    )

Values of refined parameters:
scale: 1.8154299326999377 +/- 0.28909580136146845 unit_of_signal.ps
center 0.31240490357444844 +/- 0.18187404693042636 1/ps
radius: 4.999999999999997 +/- 36.96869267281039 Angstrom
resTime: 0.20143830554800685 +/- 1.148101380171011 ps
sigma: 0.9999999999999999 +/- 0.2854945319309791

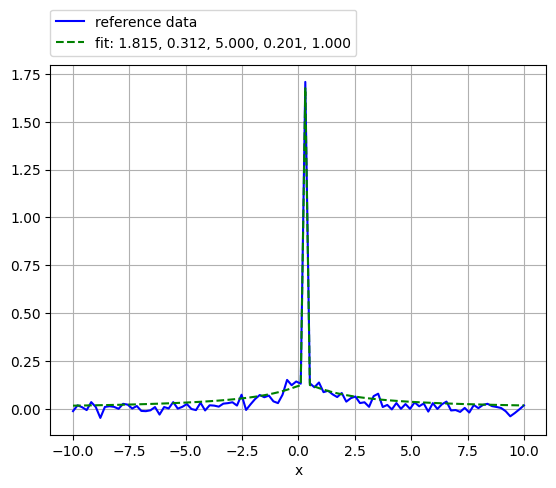

# Comparison of reference data with fitting result
if success_fit:
    fig3, ax3 = plt.subplots()
    ax3.plot(xx, sqw_jump_sites_noisy, 'b-', label='reference data')
    ax3.plot(xx, func_to_fit(xx, *popt), 'g--', label='fit: %5.3f, %5.3f, %5.3f, %5.3f, %5.3f' % tuple(popt))
    ax3.legend(bbox_to_anchor=(0., 1.15), loc='upper left', borderaxespad=0.)
    ax3.set_xlabel('x')
    ax3.grid();

---
