Equivalent sites circle with lmfit

Introduction

The objective of this notebook is to show how to use the Equivalent Sites Circle model to perform some fits using lmfit.

Physical units

Please note that the following units are used for the QENS models

Type of parameter	Unit
Time	picosecond
Length	Angstrom
Momentum transfer	1/Angstrom

For information about unit conversion, please refer to the jupyter notebook called Convert_units.ipynb in the tools folder.

The dictionary of units defined in the cell below specify the units of the refined parameters adapted to the convention used in the experimental datafile.

# Units of parameters for selected QENS model and experimental data
dict_physical_units = {'omega': "1/ps",
                       'q': "1/Angstrom",
                       'scale': "unit_of_signal/ps",
                       'center': "1/ps",
                       'radius': "Angstrom",
                       'resTime': "ps"}

Importing libraries

import numpy as np
import ipywidgets
import matplotlib.pyplot as plt
import lmfit
import QENSmodels

Plot of the fitting model

The widget below shows the peak shape function imported from QENSmodels where the function’s parameters can be varied.

# Dictionary of initial values
ini_parameters = {'q': 1., 'scale': 5., 'center': 5., 'Nsites': 3, 'radius': 5., 'resTime': 1.}

def interactive_fct(q, scale, center, Nsites, radius, resTime):
    """
    Plot to be updated when ipywidgets sliders are modified
    """
    xs = np.linspace(-10, 10, 100)

    fig1, ax1 = plt.subplots()
    ax1.plot(xs,
             QENSmodels.sqwEquivalentSitesCircle(
                 xs,
                 q,
                 scale,
                 center,
                 Nsites,
                 radius,
                 resTime))
    ax1.set_xlabel('x')
    ax1.grid()

# Define sliders for modifiable parameters and their range of variations

q_slider = ipywidgets.FloatSlider(value=ini_parameters['q'],
                                  min=0.1, max=10., step=0.1,
                                  description='q',
                                  continuous_update=False)

scale_slider = ipywidgets.FloatSlider(value=ini_parameters['scale'],
                                      min=0.1, max=10, step=0.1,
                                      description='scale',
                                      continuous_update=False)

center_slider = ipywidgets.IntSlider(value=ini_parameters['center'],
                                     min=-10, max=10, step=1,
                                     description='center',
                                     continuous_update=False)

Nsites_slider = ipywidgets.IntSlider(value=ini_parameters['Nsites'],
                                     min=2, max=10, step=1,
                                     description='Nsites',
                                     continuous_update=False)

radius_slider = ipywidgets.FloatSlider(value=ini_parameters['radius'],
                                       min=0.1, max=10, step=0.1,
                                       description='radius',
                                       continuous_update=False)

resTime_slider = ipywidgets.FloatSlider(value=ini_parameters['resTime'],
                                        min=0.1, max=10, step=0.1,
                                        description='resTime',
                                        continuous_update=False)

grid_sliders = ipywidgets.HBox([ipywidgets.VBox([q_slider, scale_slider, center_slider]),
                                ipywidgets.VBox([Nsites_slider, radius_slider, resTime_slider])])


# Define function to reset all parameters' values to the initial ones
def reset_values(b):
    """
    Reset the interactive plots to inital values
    """
    q_slider.value = ini_parameters['q']
    scale_slider.value = ini_parameters['scale']
    center_slider.value = ini_parameters['center']
    Nsites_slider.value = ini_parameters['Nsites']
    radius_slider.value = ini_parameters['radius']
    resTime_slider.value = ini_parameters['resTime']

# Define reset button and occurring action when clicking on it
reset_button = ipywidgets.Button(description = "Reset")
reset_button.on_click(reset_values)

# Display the interactive plot
interactive_plot = ipywidgets.interactive_output(interactive_fct,
                                         {'q': q_slider,
                                          'scale': scale_slider,
                                          'center': center_slider,
                                          'Nsites': Nsites_slider,
                                          'radius': radius_slider,
                                          'resTime': resTime_slider})

display(grid_sliders, interactive_plot, reset_button)

Creating the reference data

nb_points = 200
xx = np.linspace(-5, 5, nb_points)
added_noise = np.random.normal(0, 1, nb_points)

equiv_sites_circle_noisy = QENSmodels.sqwEquivalentSitesCircle(
    xx,
    q=1.,
    scale=1.3,
    center=0.3,
    Nsites=5,
    radius=4.,
    resTime=3.
) * (1 + 0.1 * added_noise) + 0.01 * added_noise

Setting and fitting

gmodel = lmfit.Model(QENSmodels.sqwEquivalentSitesCircle)

print(f'Names of parameters: {gmodel.param_names}\nIndependent variable(s): {gmodel.independent_vars}.')

ini_values = {'scale': 1.22, 'center': 0.2, 'Nsites': 5, 'radius': 3.1, 'resTime': 0.33}

# Define boundaries for parameters to be refined
gmodel.set_param_hint('scale', min=0)
gmodel.set_param_hint('center', min=-5, max=5)
gmodel.set_param_hint('radius', min=0)
gmodel.set_param_hint('resTime', min=0)

# Fix some of the parameters
gmodel.set_param_hint('q', vary=False)
gmodel.set_param_hint('Nsites', vary=False)

# Fit
result = gmodel.fit(
    equiv_sites_circle_noisy,
    w=xx,
    q=1.,
    scale=ini_values['scale'],
    center=ini_values['center'],
    Nsites=ini_values['Nsites'],
    radius=ini_values['radius'],
    resTime=ini_values['resTime']
)

Names of parameters: ['q', 'scale', 'center', 'Nsites', 'radius', 'resTime']
Independent variable(s): ['w'].

# Plots - Initial model and reference data
fig0, ax0 = plt.subplots()
ax0.plot(xx, equiv_sites_circle_noisy, 'b.-', label='reference data')
ax0.plot(xx, result.init_fit, 'k--', label='model with initial guesses')
ax0.set(xlabel='x', title='Initial model and reference data')
ax0.grid()
ax0.legend();

Plotting results

using methods implemented in lmfit

# display result
print('Result of fit:\n',result.fit_report())

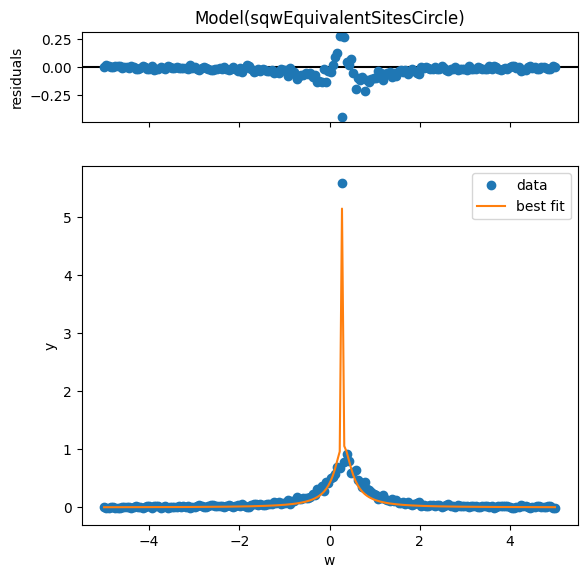

# plot fitting result using lmfit functionality
result.plot()

Result of fit:
 [[Model]]
    Model(sqwEquivalentSitesCircle)
[[Fit Statistics]]
    # fitting method   = leastsq
    # function evals   = 198
    # data points      = 200
    # variables        = 4
    chi-square         = 0.78807867
    reduced chi-square = 0.00402081
    Akaike info crit   = -1099.29495
    Bayesian info crit = -1086.10168
    R-squared          = 0.97794797
[[Variables]]
    q:        1 (fixed)
    scale:    1.06208998 +/- 0.02801110 (2.64%) (init = 1.22)
    center:   0.30150753 +/- 0.00748689 (2.48%) (init = 0.2)
    Nsites:   5 (fixed)
    radius:   2.22314630 +/- 0.02459403 (1.11%) (init = 3.1)
    resTime:  3.26970354 +/- 0.15894757 (4.86%) (init = 0.33)
[[Correlations]] (unreported correlations are < 0.100)
    C(scale, radius)   = 0.795
    C(scale, resTime)  = -0.664
    C(radius, resTime) = -0.306

Other option: plot fitting result using matplotlib.pyplot

fig2 = plt.figure()
plt.plot(xx, equiv_sites_circle_noisy, 'b-', label='reference data')
plt.plot(xx, result.best_fit, 'r', label='fitting result')
plt.legend()
plt.xlabel('x')
plt.title('Fit result and reference data')
plt.grid();

Print values and errors of refined parameters:

for item in ['resTime', 'radius', 'center', 'scale']:
    print(f"{item}: {result.params[item].value} +/- {result.params[item].stderr} {dict_physical_units[item]}")

resTime: 3.2697035443613567 +/- 0.15894756750318187 ps
radius: 2.223146298944533 +/- 0.024594027334816464 Angstrom
center: 0.3015075331286452 +/- 0.007486889591849595 1/ps
scale: 1.0620899833174433 +/- 0.02801109830779069 unit_of_signal/ps

---
